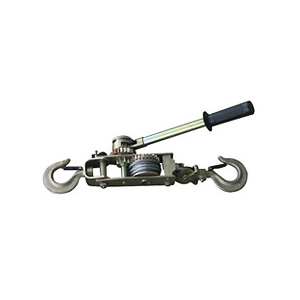

Used in power engineer ,telecommunications engineering or a traction device to tighten the the lead groud,playing with the pull .
Using high-strength steel wire ,not easily pulled off a strong ,forged alloy steel hook for the hook for the system And the majority of oval -shaped hook with a safety device ,aestheticshigh strength .
Handle can be rotated 360 degrees, the control card can be turned to rotate civil easy to use.
|
Item No.
|
JX-10
|
JX-15
|
JX-20
|
|
Rated Load
|
10KN
|
15KN
|
20KN
|
Over Lading
Test Load
|
1.25Ton
|
1.875Ton
|
2.5Ton
|
|
Minimum Length
|
410mm
|
480mm
|
480mm
|
|
Stroke
|
800mm
|
920mm
|
1400mm
|
|
Weight
|
3.2kg
|
4.7kg
|
5.2kg
|
|
