1. On both ends of the low end of the high output, large amount of oil;
2. Low pressure use plunger type, improve the effective pressure;
3. Dual active, controlled by hand, can solve the problem of large tonnage, long type hydraulic cylinder which reset too slow.
4. Pressure overload protection device, avoid overpressure and damage the equipment;
5. Dual active, use three-potential four-way valve, can be forward, maintain, back.
|

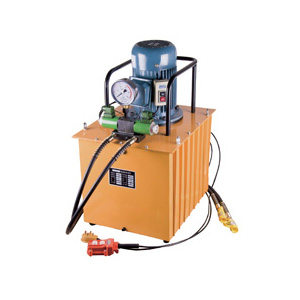

Item No.
|
DHB300-D2
|
|
Working pressure
|
high pressure£º70Mpa
|
low pressure£º10Mpa
|
|
Rated output
|
high£º0.9L/min
|
low£º5L/min
|
|
Power Rating
|
0.75Kw
|
Speed
|
1400r/min
|
|
Working Power
|
AC220V/50Hz £¨customizable£©
|
|
Oil Capacity
|
7L£¨customizable£©
|
Type of oil
|
15#-46#
antiwear hydraulic oil
|
|
