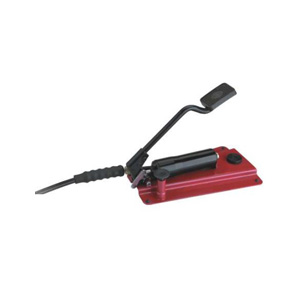

1.Hydraulic operated pump to drive crimping head, cutting heads and punching head including, high pressure hose and couple plug.
2.PT3/8" screw thread, the oil number is Shell Tellus T 15,which must be changed every half year.
|
Item.No
|
PEXP
|
|
Type
|
|
Foot
|
|
Max output pressure
|
Low pressure
|
2MPa
|
|
high pressure
|
50MPa
|
|
Output of the oil
|
Low pressure
|
9cc
|
|
high pressure
|
1.2cc
|
|
Capacity of oil
|
220cc
|
|
Direction of piston
|
double
|
|
Weight
|
approx.2.5kg
|
|
Measurement(LxWxH)
|
330x200x120mm
|
|
