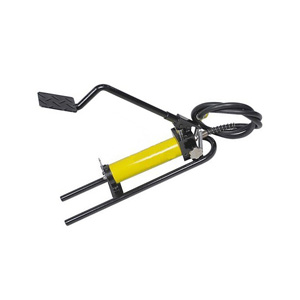

1.Pump is designed in two stages of high and low speed for quick output ,even if lack of electric power,operation could be carried conveniently.
2.Pressure could be stopped in middle ,Inner designed high pressure safety unit protect hdraulic valve.
3.Oil pipe fitted with quick coupling could be ordered in any length .It could be fitted with pressure meter(to be ordered)
4.Oil pipe coupling fitted with PT3/8"thread.

|
Item.No
|
CFP-630
|
|
Type
|
|
Foot
|
|
Max output pressure
|
Low pressure
|
2MPa
|
|
high pressure
|
70MPa
|
|
Output of the oil
|
Low pressure
|
13cc
|
|
high pressure
|
2.3cc
|
|
Capacity of oil
|
700cc
|
|
Direction of piston
|
double
|
|
Weight
|
approx.10.5kg
|
|
Measurement(LxWxH)
|
460x155x210mm
|
|
