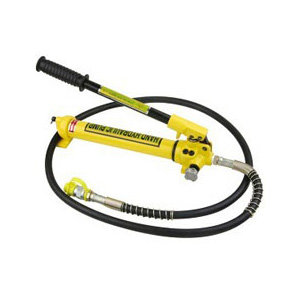

1.Hydraulic operated pump to drive crimping head, cutting heads and punching head including, high pressure hose and couple plug.
2.PT3/8" screw thread, the oil number is Shell Tellus T 15,oil which must be changed every half year.
|
Item.No
|
CP-390
|
|
Type
|
|
hand
|
|
Max output pressure
|
Low pressure
|
20kg/cm2
|
|
high pressure
|
700kg/cm2
|
|
Output of the oil
|
Low pressure
|
10cc
|
|
high pressure
|
1.8cc
|
|
Capacity of oil
|
480cc
|
|
Direction of piston
|
double
|
|
Weight
|
approx.5.5kg
|
|
Measurement(LxWxH)
|
410x105x155mm
|
|
