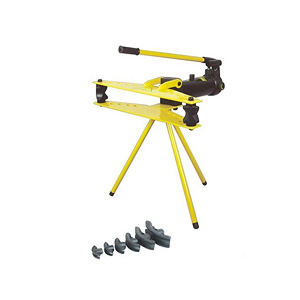

1.Manual pipe bending tool is suit for common water pipe, wire pipe, thick-wall conduit tube, bending the angle with 90º.
2.1/2¡±-2¡± can be shaped 90º one time, for 2 1/2¡±-4¡±, pipe must be moved and bended for five times to the demanded radian.
|
Item No.
|
CPB-1
|
CPB-2
|
CPB-3
|
CPB-4
|
|
Output(T)
|
10
|
16
|
18
|
20
|
Bending
range(mm)
|
Thin-wall
conduit tube
|
13mm-36mm
|
15mm-75mm
(5/8£¢)(2£¢)
|
15mm-75mm
(5/8£¢)(3£¢)
|
15mm-75mm
(5/8£¢)(4£¢)
|
Thick-wall
conduit tube
|
13mm-30mm
|
16mm-52mm
(1/2£¢)(2£¢)
|
16mm-82mm
(1/2£¢)(3£¢)
|
16mm-104mm
(1/2£¢)(4£¢)
|
Carton steel
pipe(Gas pipe)
|
13mm-30mm
|
16mm-52mm
(1/2£¢)(2£¢)
|
16mm-65mm
(1/2£¢)(3£¢)
|
15mm-100mm
(1/2£¢)(4£¢)
|
|
Stroke(mm)
|
170
|
250
|
270
|
270
|
|
Oil reseaves(cc)
|
600
|
580
|
640
|
760
|
|
Weight(kg)
|
approx.20
|
approx.58
|
approx.108
|
approx.190
|
|
