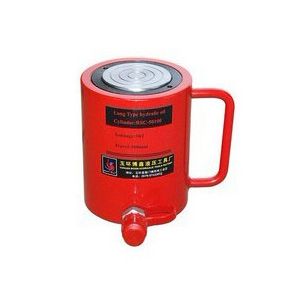

RCr  Hydraulic Cylinder |
| Product Description: |
|
Item No.
|
Output
(T)
|
Stroke
(mm)
|
Effactive
area(cm2)
|
Oil
Capacity(L)
|
Height of
Product(mm)
|
Extended
height(mm)
|
Outside
Dia(mm)
|
|
RC-10100
|
10
|
100
|
13.8
|
0.145
|
155
|
255
|
58
|
|
RC-10150
|
10
|
150
|
13.8
|
0.22
|
205
|
355
|
58
|
|
RC-20100
|
20
|
100
|
26.4
|
0.28
|
155
|
255
|
88
|
|
RC-20150
|
20
|
150
|
26.4
|
0.42
|
205
|
355
|
88
|
|
RC-30100
|
30
|
100
|
41.8
|
0.416
|
162
|
262
|
107
|
|
RC-30150
|
30
|
150
|
41.8
|
0.624
|
212
|
362
|
107
|
|
RC-50100
|
50
|
100
|
78.5
|
0.7
|
162
|
262
|
127
|
|
RC-50150
|
50
|
150
|
78.5
|
1.06
|
212
|
362
|
127
|
|
RC-100100
|
100
|
100
|
103.8
|
1.32
|
172
|
272
|
177
|
|
Item No.
|
Bore Dia
(mm)
|
Principal Dia
(¦µmm)
|
Thread for
input oil-
port(ZG)
|
Saddle
protrusion
form Plgr
(mm)
|
Weight
(mm)
|
|
RC-10100
|
43
|
38
|
3/8¡±-19
|
2
|
3.5
|
|
RC-10150
|
43
|
38
|
3/8"-19
|
2
|
4.3
|
|
RC-20100
|
65
|
58
|
3/8"-19
|
2
|
9
|
|
RC-20150
|
65
|
58
|
3/8"-19
|
2
|
10
|
|
RC-30100
|
75
|
68
|
3/8"-19
|
2
|
12.5
|
|
RC-30150
|
75
|
68
|
3/8"-19
|
2
|
14.5
|
|
RC-50100
|
95
|
85
|
3/8"-19
|
2
|
18
|
|
RC-50150
|
95
|
85
|
3/8"-19
|
2
|
22
|
|
RC-100100
|
130
|
110
|
3/8"-19
|
2
|
30
|
|
|
|
|
