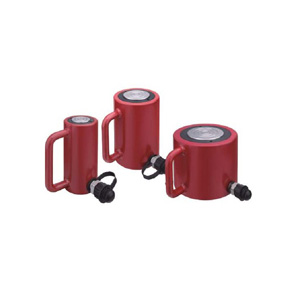

RSCr  Single hydraulic cylinder |
| Product Description: |
1.The surface of principle axis is finished with chrome plate to protect the using of longevity of the product.
2.Principle axis has the function of retracting automatically.
3.Surface coating resists corrosion, extending cylinder life.
4.Hardy underlay to avoid axis break when it is overloading.
|
Item No.
|
Output
(T)
|
Stroke
(mm)
|
Effactive
area(cm2)
|
Oil
Capacity
(L)
|
Height of
Product
(mm)
|
Extended
height
(mm)
|
Outside
Dia
(mm)
|
|
RSC-1050
|
10
|
50
|
11.3
|
0.072
|
105
|
155
|
62
|
|
RSC-2050
|
20
|
50
|
22
|
0.14
|
105
|
155
|
88
|
|
RSC-3050
|
30
|
50
|
31.1
|
0.22
|
108
|
158
|
105
|
|
RSC-5050
|
50
|
50
|
56.7
|
0.354
|
112
|
162
|
128
|
|
RSC-10050
|
100
|
50
|
95
|
0.66
|
122
|
172
|
175
|
|
Item No.
|
Bore Dia
(mm)
|
Principal Dia
(mm)
|
Thread for input oil-port
(ZG)
|
saddle protrusion
form plgr
(mm)
|
Weight
(mm)
|
|
RSC-1050
|
45
|
38
|
3/8"-19
|
2
|
3
|
|
RSC-2050
|
65
|
53
|
3/8"-19
|
2
|
5
|
|
RSC-3050
|
75
|
68
|
3/8"-19
|
2
|
6.8
|
|
RSC-5050
|
95
|
85
|
3/8"-19
|
2
|
9.8
|
|
RSC-10050
|
130
|
110
|
3/8"-19
|
2
|
23
|
|
|
|
|
