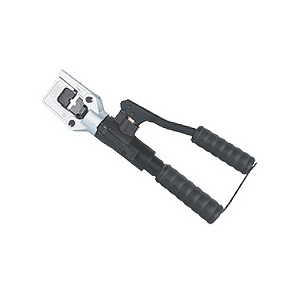

1.New design two speed hydraulic tool light weight and compact, this tool is ideal for working in confined spaces.
2.Having the benefit of spring loaded handles the dies can be advanced using only one head, therefore leaving the other hand free to position the connector.
3.For easy of operation and comform to the operator, the tool head can be fully rotated through 180degrees.
4.The built-in safety valve will by-pass the oil supply when the maximum pressure is reached and a pressure release system can easily be operated at any stage of the compression.
|
Item No.
|
HT-51
|
|
Crimping Range
|
10-240mm2
|
|
Crimping Force
|
60KN
|
|
Crimping Type
|
hexagon crimping
|
|
Stroke
|
15mm
|
|
Length
|
380mm
|
|
Weight
|
2.75kg
|
|
Package
|
Plastic case
|
|
Accessories
|
Crimping dies: 10,16,25,35,50,70,95,120,,150,185,240mm2
|
|
