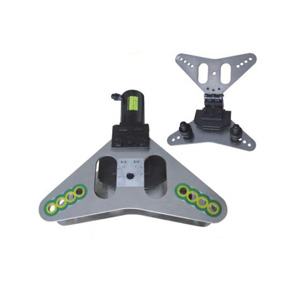

1.The dual machine is designed for flat bending and standing of brass and Al. Curve radian accords with national standard.Smooth without knit.No wing plate adopts without welding hingle style.Meanwhile,which is by tempering processing,strong and during, no breakage and prevent aperture from transformation,switching convenience.
2.The unique design of curve bending scale 45-90 degrees, a curved shape.In the field of high precision, lead and find the template matahing row.Installation qulickly and easliy, engaged in the personnel with high efficiency, in power line or machine or maintenance on-site application.exert its powerful efficiency.
|
Item No.
|
CB-125D
|
|
pressure
|
250KN
|
|
Stroke
|
200mm
|
|
Bending thickness
|
12mm max.of Cu/AL sheet;10mm max. of steel plate.
|
|
Bending width
|
Max.125mm
|
|
Bend angle
|
D>90 degree angle,arbitrary angle
|
|
Bend radius
|
700cc
|
|
Weight
|
42.5kg
|
|
Oil capacity
|
600ml
|
|
Weight
|
82kg
|
|
