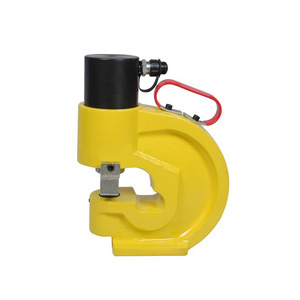

1.Punching the different kind of metal sheet up to 10mm.
2.It can match hand pump CP-700 or electric pump.
3.High-strength retum spring for rapid cylinder retraction.
4.High-hardness of material for punching die, easier for operation.
5.Half-opened casting body, widely use in different areas.
|
Item No.
|
CH-70
|
|
Punching force
|
350KN
|
|
Max thickness of sheet
|
12mm of copper sheet/ 6 mm of metal sheet
|
|
Depth of throat
|
110mm
|
|
Height
|
approx.460mm
|
|
Weight
|
approx.34.5kg
|
|
Package
|
carton
|
|
Size
|
390X250X140mm
|
|
Accessories
|
3/8"(¦µ10.5), 1/2"(¦µ13.8), 5/8"(¦µ17), 3/4"(¦µ20.5)mm
|
|
Note
|
It is used for punching Cu/Al plate
|
|
