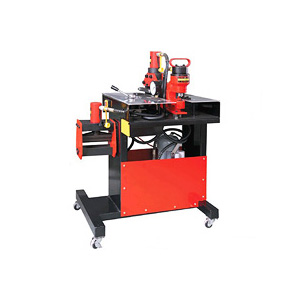

1.3in1 busbaar processor for cutting,punching and bending of copper busbar and aluminum busbar
2.It is designed for irregular sized bar prosession on Mid and small scaled transformer,switchboard box line or assembling site.
3.Punch holes without burr,Cutting surface Smooth and Cutting angle accurately.it's good for quick and repeat batch procession.
4.Four way valve control swich accurately guide to the position of punching ,bending and cutting.
5.Sate and firm pedal switch could control oil inlet and oil return.
|
Specification
|
Cutting,punching,horzontal bending,erective bending
|
|
Input voltage/ control voltage
|
Single phase 50Hz,220v
|
|
Rating working oil pressure
|
700kgf/cm2 (over pressure safety valve setting valeue)
|
|
Dimension of moveable workbench
|
800mm(L)*600mm(W)*770mm(H)
|
|
Busbar cutting capability
|
(Copper busbar/aluminum busbar)150*8mm/150*10mm
|
|
Outlet force of busbar cutter
|
150KN
|
|
Cutting Range
|
150mm(Width)X10mm(Thickness)
|
|
Outlet force of puncher
|
310KN
|
|
The distance between hole centre busbar edge
|
65mm
|
|
Distancefrom hole to sheet side
|
95mm
|
|
Punching capability- copper busbar/ aluminum busbar
|
¦µ6-¦µ20.5(Max.Thickness):10mm
|
|
Standard assembled punching dies
|
3/8"(¦µ10.5m©O),1/2"(¦µ13.8m©O),5/8"(¦µ17m©O),3/4"(¦µ20.5m©O)
|
|
Outlet force of bender
|
150KN
|
|
Horizontal bending capability
|
150*10mm
|
|
